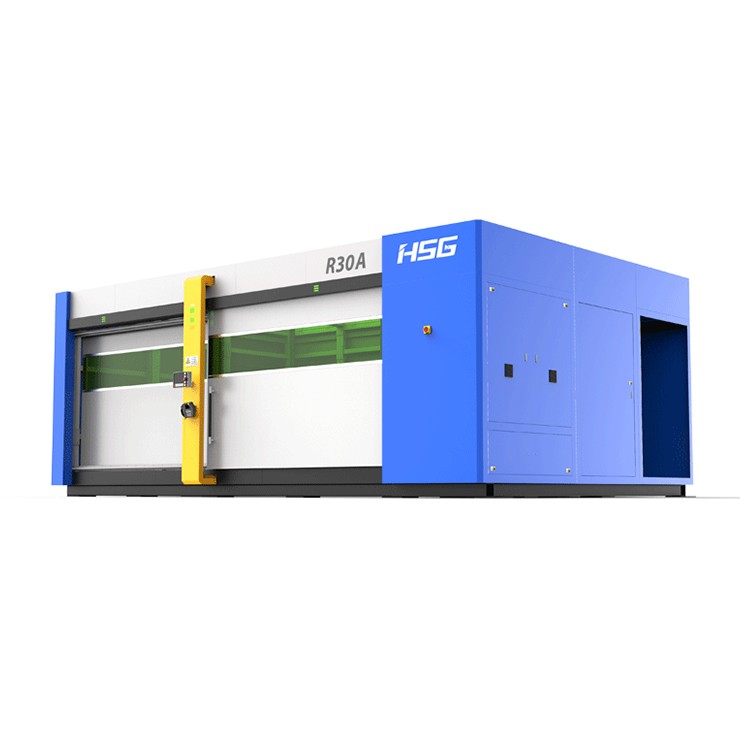

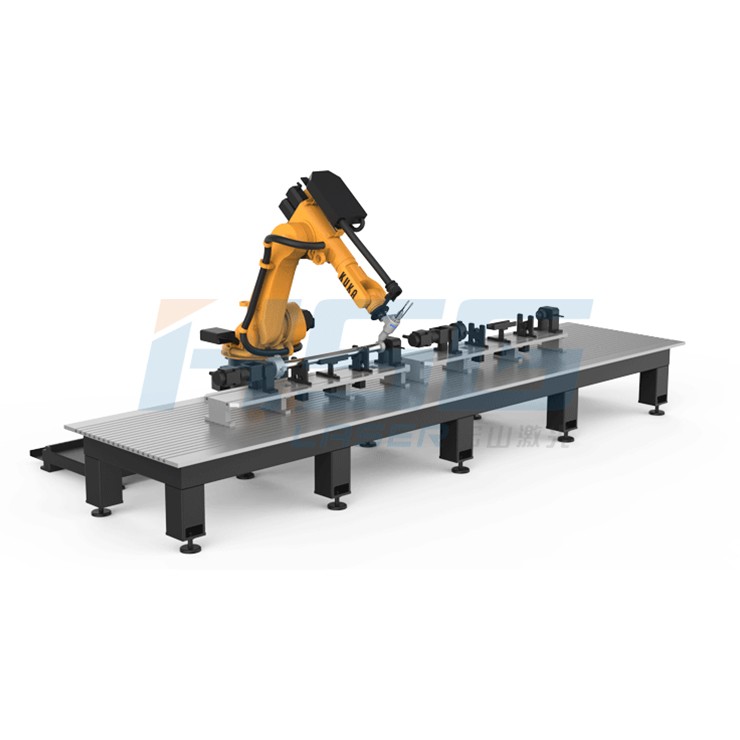

Robot 3d Fiber Laser Cutting Machine HS-R30A
Specification
| Arm length2000 (mm) |
Joint No6 |
| Positioning Accuracy±0.05 (mm) | Max.loading weight30 (kg) |
| Power10KVA | Related loading weight16 (kg) |
Feature:

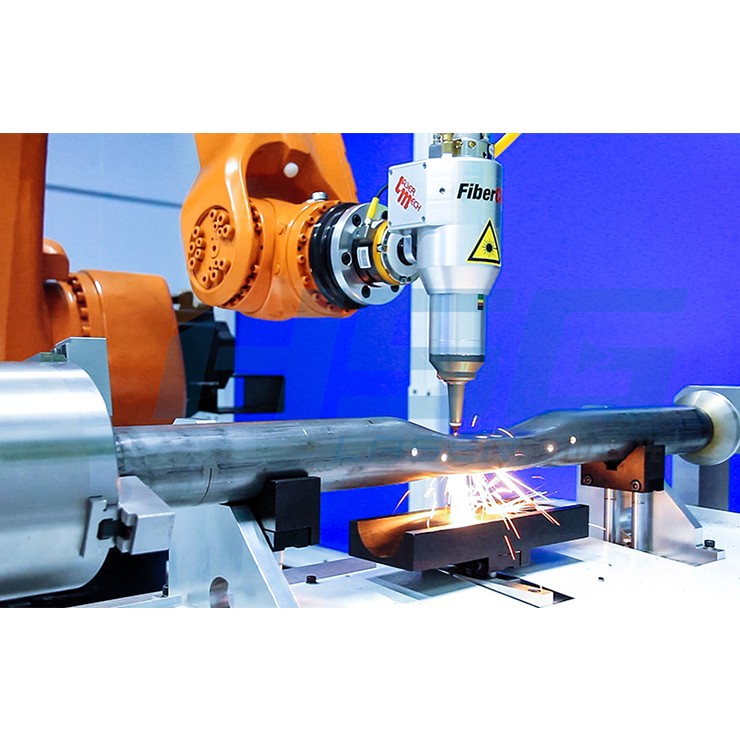

- Fiber cutting robot cuts various complicated three-dimensional curves freely and flexibly.
- Adopt flexible fiber laser source that can transfer in a far distance as the transferring media, it won't limit the working path of the robot.
- Concentrated operation, fast moving and presise processing enhance the cutting quality stably.
- Reduce the labor intensity and avoid high requirement on the workers' technique and labor cost.
Technical Parameter:
| Repeated Accuracy | ±0.05mm |
| Axis 1 | ±185° |
| Axis 2 | +35°/-135° |
| Axis 3 | +158°/-120° |
| Axis 4 | ±350° |
| Axis 5 | ±119° |
| Axis 6 | ±350° |
| Weight | 800kg |
| Power | 10KVA |
| Installation | Against the floor/hanged upside/down Wall Mounted |
