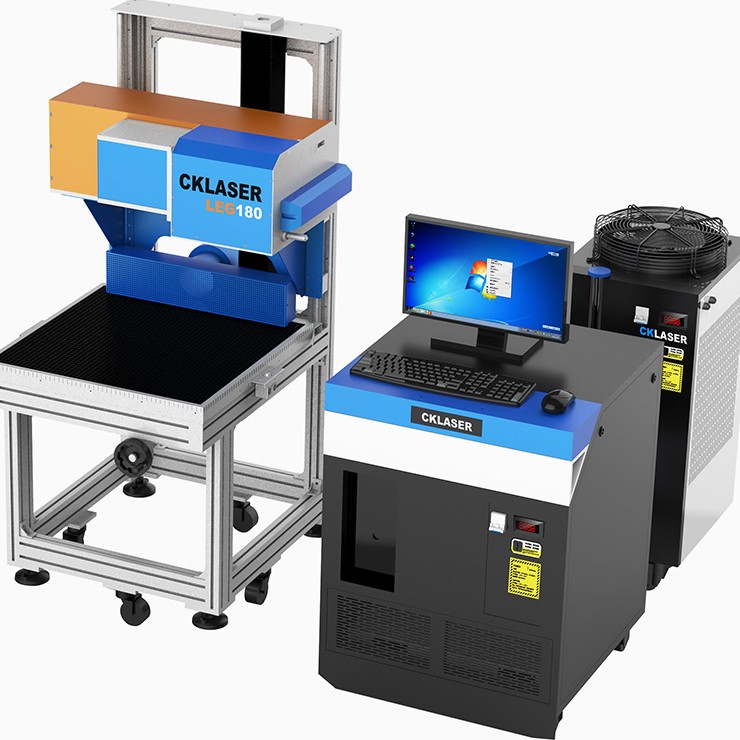

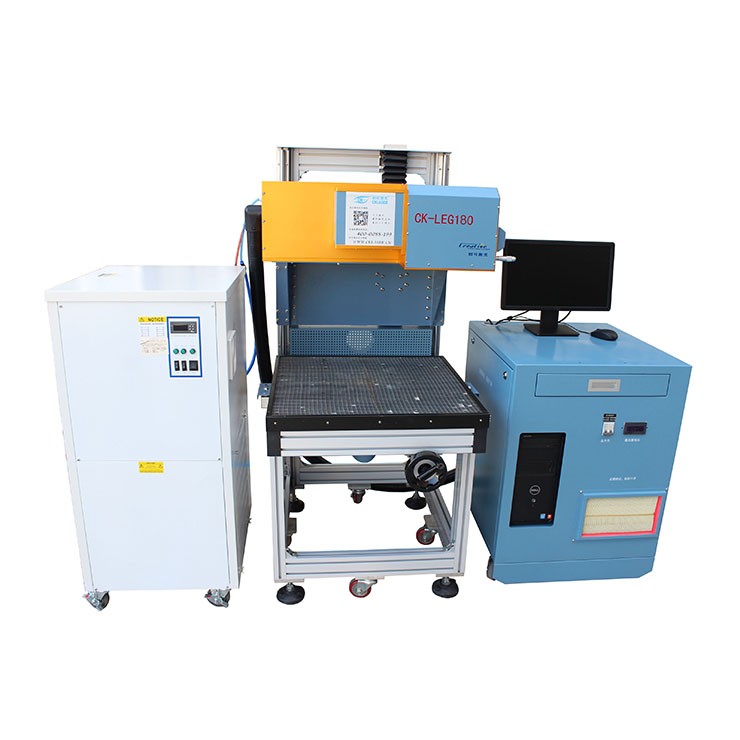

CK-LEG180
CK-LEG180
Equipment description:
CO2 series of non-metallic laser marking machine is controlling by the computer, which applies 10640nmlaser beam to act
on the surfaceas thepredetermined trajectory through beam expansion, focusing and finally controlling the deflection of
galvanometer to gasify the surface and achieve engraving effects.
Core advantagesCK-LEG is characterized by good beam pattern, stable-performance system and maintenance free. It is appropriate to
be used in industrial processing sites with high-volume, variety, high-speed and high-precision continuous production.
Applicable industrials:
It is applied in many industries, such as shoes, clothing, packaging, toys, food, beverage, medicine, daily-use cosmetics
and other industries.
Applicable materials
It is widely used in many non-metal materials, leather, cloth, paper, PVC, rubber, wood, ceramics, glass, plastics and so on.
Production parameter:
Equipment description:
CO2 series of non-metallic laser marking machine is controlling by the computer, which applies 10640nmlaser beam to act
on the surfaceas thepredetermined trajectory through beam expansion, focusing and finally controlling the deflection of
galvanometer to gasify the surface and achieve engraving effects.
Core advantagesCK-LEG is characterized by good beam pattern, stable-performance system and maintenance free. It is appropriate to
be used in industrial processing sites with high-volume, variety, high-speed and high-precision continuous production.
Applicable industrials:
It is applied in many industries, such as shoes, clothing, packaging, toys, food, beverage, medicine, daily-use cosmetics
and other industries.
Applicable materials
It is widely used in many non-metal materials, leather, cloth, paper, PVC, rubber, wood, ceramics, glass, plastics and so on.
Production parameter:
| MODE | CK-LEG180 |
| Average power | 180W |
| Laser source | Rofin |
| Wavelength | 10640nm |
| Galvanometer | USA CTI |
| Pulse frequency | 0-130KHZ |
| Marking range | 300mm×300mm～600mm×600mm（adjustable） |
| Computer | DELLcomputer19 inch |
| Operation system | Windows XP |
| Locate system | Red light positioning |
| Voltage | 220VAC/10A/50-60HZ |
| Maximum power | 4500W |
| Cooling system | Constant temperature cooling unit |
| Working environment | temperature15-30℃/humidity30-80% |
Main feature:
- 3 axis dynamic system, large marking range, more precise light spot diameter.
- Long and stable working time
- Faster processing speed, sharper and smooth cutting edge.
- Even processing effects, there is no defocus phenomenon
- Smaller focus spot,higher power density which can make engraving, cutting, punching more precision.
- Adopted advanced cooling system
- With Surepulse’s function, the peak power can up to 6 times, the power output by every pulse can keep constant
- With optic corrective system, beam quality is excellent, K>0.8（M2<1.2）, beam divergent angle <2.5mrad (when transmission distance
within 1-10 meters), beam ovality <1.1:1
